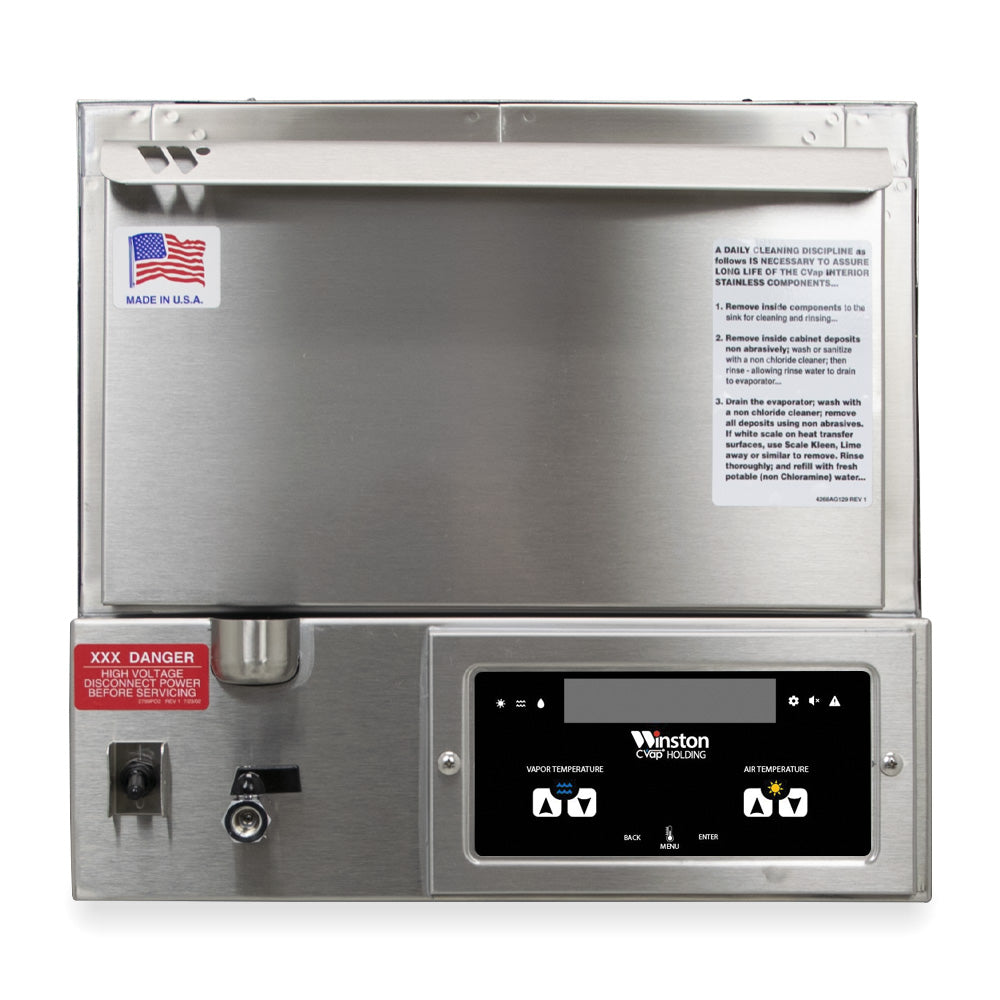

Winston HBB5N1 CVap® Single Warming Drawer Heated Holding Unit - Free Standing - 120V, 1572W

Winston HBB5N1 CVap® Single Warming Drawer Heated Holding Unit with Convection Fan - Free Standing - 120V, 1572W

WINSTON INDUSTRIES SKU: HBB5N1
Price
Save
/
🎥

Request a Demo

Schedule a personalized demonstration with our product specialist.

✓ Live Product Walkthrough
🏷️

Price Match Guarantee

Found it at a lower price? Share the quote - we’ll match or beat it.

✔ Fast response within 24 hours | ✔ No hidden conditions
  • In stock
  • Backordered, shipping soon
  • This item ships from the manufacture's warehouse. Usually ships within 5-7 business days. Lead times vary based on manufacturer stock
Product Spec Sheet

The Winston HBB5N1 CVap® Hold & Serve Drawer is engineered to preserve food temperature, texture, and quality for extended holding periods. Utilizing Winston's patented Controlled Vapor Technology (CVap®), this compact single-drawer warming unit provides precise control over both food temperature and moisture, making it ideal for restaurants, cafeterias, healthcare facilities, schools, and commercial foodservice operations.

Featuring electronic differential controls, a full-perimeter insulated cabinet, and an integrated circulation fan, the HBB5N1 delivers consistent holding conditions that help prevent foods from drying out while maintaining serving-ready quality. The manually filled water reservoir holds approximately 0.8 gallons (3 liters) and supports Winston's unique vapor-based holding environment.

Constructed from durable stainless-steel and designed for daily commercial use, the HBB5N1 offers reliable performance in a compact footprint.

With capacity for full-size steam table pans, easy-to-clean stainless-steel construction, and a compact footprint, the HBB5N1 is an ideal solution for high-performance food holding and serving applications.

Note: Pans are Side-Loaded (Short Pan Edge) into the HBB5N1 Warming Drawer

Key Features:

  • Patented CVap® Controlled Vapor Technology
  • Single insulated holding drawer design
  • Two electronic differential controls for temperature and texture adjustment
  • Integrated circulation fan for uniform heat distribution
  • Temperature range from 90°F to 180°F (32°C to 82°C)
  • Maximum drawer temperature of 250°F (121°C)
  • Manual water-fill operation
  • Holds approximately 0.8 gallons (3 liters) of water
  • Full-perimeter insulated cabinet construction
  • Load capacity of 20 lbs. per drawer
  • Stainless-steel interior and exterior construction
  • Compatible with steam table pans and gastronorm pans
  • Easy-to-clean removable drawer assembly
  • UL EPH ANSI/NSF 4, cUL, UL Sanitation, UL EPH, and CE certified
  • Includes NEMA 5-15P plug and power cord
  • One-year limited manufacturer's warranty

Specifications

Manufacturer Winston Foodservice
Model HBB5N1
Series CVap® Hold & Serve Drawer
Type Free-Standing Warming Drawer
Drawer Configuration 1 Drawer
Technology CVap® Controlled Vapor Technology
Control Type Electronic Differential Controls
Temperature Range 90°F to 180°F (32°C to 82°C)
Maximum Drawer Temperature 250°F (121°C)
Water Capacity 0.8 Gallons (3 Liters)
Load Capacity 20 lbs. per Drawer
Pan Capacity 1 Full, 2 Half, or 3 Third Steam Table Pans
Additional Capacity 1 Full-Size 1/1 Gastronorm Pan
Construction Stainless Steel
Width 24.1"
Depth 29.3"
Height 15.7"
Feet 1/2" Adjustable Feet
Voltage 120V
Frequency 60 Hz
Phase 1 Phase
Amperage 13.1 Amps
Wattage 1572 Watts
MCA 15 Amps
Plug Type NEMA 5-15P
Shipping Weight Approx. 110 lbs.
Certifications UL EPH ANSI/NSF 4, cUL, UL Sanitation, UL EPH, CE
Warranty 1 Year Limited
FAQ

Frequently Asked Questions

The HBB5N1 uses Winston's patented CVap® technology, which controls both heat and moisture to maintain food quality significantly better than conventional dry heat holding equipment.
The unit can hold one full-size steam table pan, two half-size pans, three third-size pans, or one full-size 1/1 gastronorm pan.
The HBB5N1 holds approximately 0.8 gallons (3 liters) of water for vapor generation.
Yes. The electronic differential controls allow operators to independently adjust food temperature and texture settings.
The drawer is rated for a maximum load of 20 lbs. (9 kg).
The unit operates on 120V, 60Hz, single-phase power, drawing 13.1 amps, and includes a NEMA 5-15P plug.
The HBB5N1 is ideal for restaurants, quick-service operations, schools, hospitals, cafeterias, catering kitchens, and institutional foodservice environments requiring consistent food holding performance.
