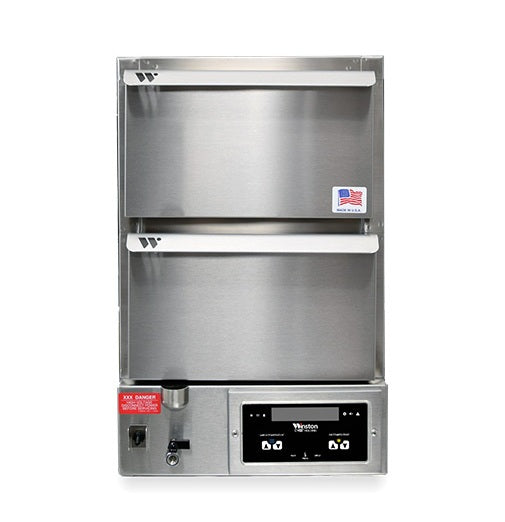

Winston HBB5N2 CVap® Double Warming Drawer Heated Holding Unit with Convection Fan - Free Standing - 120V, 1572W
Price Match Guarantee
Found it at a lower price? Share the quote - we’ll match or beat it.
✔ Fast response within 24 hours | ✔ No hidden conditions- In stock, ready to ship
- Backordered, shipping soon
- This item ships from the manufacture's warehouse. Usually ships within 5-7 business days. Lead times vary based on manufacturer stock
The Winston HBB5N2 CVap® Hold & Serve Drawer is designed to keep prepared foods hot, fresh, and ready for service without sacrificing moisture, texture, or quality. Utilizing Winston's patented CVap® (Controlled Vapor Technology), this double-drawer warming unit provides precise control of both food temperature and food texture, making it ideal for restaurants, quick-service operations, cafeterias, healthcare facilities, and institutional foodservice environments.
Featuring two independently accessible holding drawers, a full-perimeter insulated cabinet, and a circulation fan for uniform heat distribution, the HBB5N2 delivers exceptional holding performance while reducing food waste. The manually filled water reservoir holds approximately 0.8 gallons (3 liters), creating the controlled vapor environment that helps maintain product freshness for extended periods.
Constructed from durable stainless-steel and engineered for demanding commercial use, the HBB5N2 offers reliable performance and versatile holding capacity in a compact footprint.
With capacity for full-size steam table pans, easy-to-clean stainless-steel construction, and a compact footprint, the HBB5N2 is an ideal solution for high-performance food holding and serving applications.
Note: Pans are Side-Loaded (Short Pan Edge) into the HBB5N2 Warming Drawer
Key Features:
- Winston patented CVap® Controlled Vapor Technology
- Double drawer heated holding configuration
- Electronic differential controls for independent temperature and texture adjustment
- Integrated circulation fan for even heat distribution
- Full-perimeter insulated cabinet for energy efficiency
- Manual water-fill system
- Holds approximately 0.8 gallons (3 liters) of water
- Temperature range from 90°F to 180°F (32°C to 82°C)
- Maximum drawer temperature of 250°F (121°C)
- Load capacity of 20 lbs. per drawer
- Heavy-duty stainless-steel construction
- Removable drawers for easy cleaning
- Compatible with steam table pans and gastronorm pans
- Compact free-standing design
- UL, cUL, UL Sanitation, UL EPH, and CE certified
- Includes NEMA 5-15P plug
- One-year limited manufacturer's warranty
Specifications
| Manufacturer | Winston Foodservice |
|---|---|
| Model | HBB5N2 |
| Series | CVap® Hold & Serve Drawer |
| Type | Free-Standing Warming Drawer |
| Drawer Configuration | 2 Drawers |
| Technology | CVap® Controlled Vapor Technology |
| Control Type | Electronic Differential Controls |
| Temperature Range | 90°F to 180°F (32°C to 82°C) |
| Maximum Drawer Temperature | 250°F (121°C) |
| Water Capacity | 0.8 Gallons (3 Liters) |
| Load Capacity | 20 lbs. per Drawer |
| Pan Capacity | 2 Full, 4 Half, or 6 Third Steam Table Pans |
| Additional Capacity | 2 Full-Size 1/1 Gastronorm Pans |
| Construction | Stainless Steel |
| Width | 24.1" |
| Depth | 29.3" |
| Height | 25.3" |
| Feet | 1/2" Adjustable Feet |
| Voltage | 120V |
| Frequency | 60 Hz |
| Phase | 1 Phase |
| Amperage | 13.1 Amps |
| Wattage | 1572 Watts |
| MCA | 15 Amps |
| Plug Type | NEMA 5-15P |
| Shipping Weight | Approx. 140 lbs. |
| Certifications | UL, cUL, UL Sanitation, UL EPH, CE |
| Warranty | 1 Year Limited |
